Heat Recovery Systems WRG

All refrigeration units have a “cold” and a “warm” side. To archive high total efficiency it makes sense not to simply blow the system’s waste heat unexploited into the environment via the air-cooled condenser, but to recover as much energy as possible.

Possible Applications of Heat Recovery Systems

• Warm water to raise the flow temperature of dishwashers
• Warm water for sanitary application, e. g. showering or cleaning
• Raise of flow temperature of the heating system in case of low temperature heating
• Glycol defrost heating for large low temperature storage systems
• Warm water for heating of proofers

Refrigeration units usually produce water on a temperature level of 45 ° C to 50 °C. A LT refrigerating maschine with a cooling capacity of 10 kW and an operating time of 10 hours per day can heat up approx. 3.500 liters of water from + 10 ° C to + 45 ° C.

Concepts

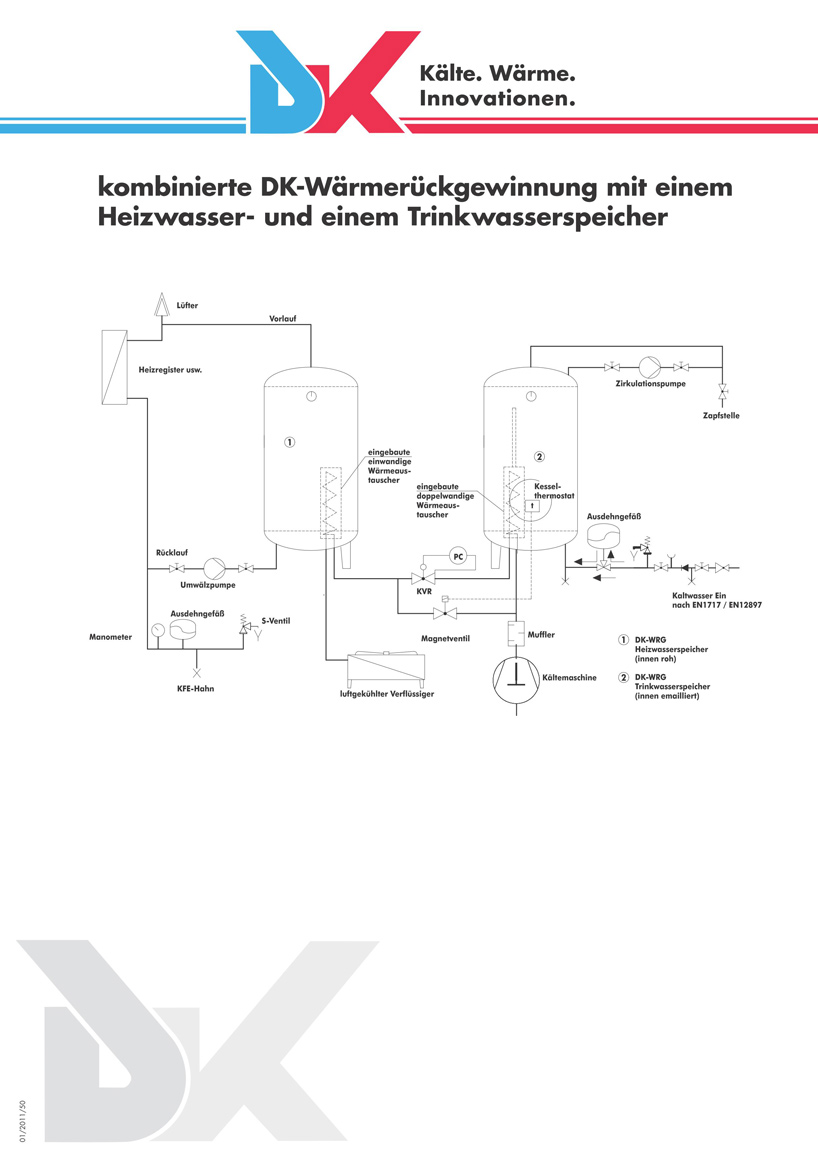

• System with or without buffer tank
• Use of superheat
     Less heat quantity, higher temperature level
• Use of condensing heat
     Higher heat quantity, lower temperature level

We analyze your requirements and develop a useful concept for your business. We inform you about current governmental funding programs. Before you invest we calculate the payback period, so you will know exactly at what time you will gain from your investment.
